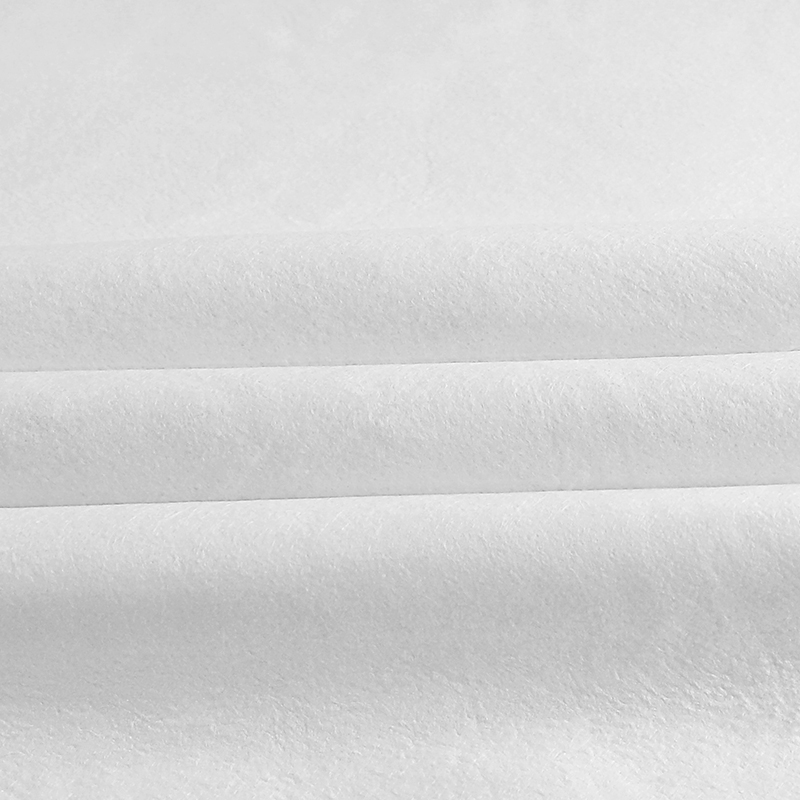

PTFE needle punched felt are produced from 100% PTFE fiber which has been punched in three-dimentional structure. They have excellent features such as excellent flexibility, molding capability, high tensile strength, creep resistance, high and low temperature resistance, corrosion resistance and anti-aging. 100% PTFE filter material can meet requirements in hostile environments of temperature fluctuating and acid & alkali in all PH range. The lifespan of PTFE filter material will be guaranteed for over 4 years as long as the temperature is controlled under the maximum operating temperature.
Product Feature:
· Composed of 100% pure PTFE fiber
· Can operate at 240 °C continuously
· Acid and alkali resistance, corrosion resistance
· Have strong chemical stability (0-14 PH)
· Can be used under high humidity environment
· Low shrinkage
· Aging resistance
· No environment pollution
Application:
· Combustion
· Coal burning boiler
· Waste incineration
· Carbon black
· Tio2 producing for fume treatment or dust collection
Compositions | 100%PTFE |
Weight (g/m2) | 750 |
Thickness (mm) | 1.0～1.2 |
Air permeability(L/m2/s) | 20-50 |
Tensile strength (N/5×20cm) | Warp | ≥800 |
Weft | ≥900 |
Tensile Elongation (％) | Warp | <20 |
Weft | <50 |
Broken strength(Mpa/min) | <50 |
Continous operating temperature (℃) | 240 |
Short time operating temperature(℃) | ≤260 |
Anti-acid | 300 |
Anti-alkali | Excellent |
Anti-abrasion | Excellent |
The stability of water solution | Excellent |
Finishing treatment | PTFE membrance |
