Replacement Cages

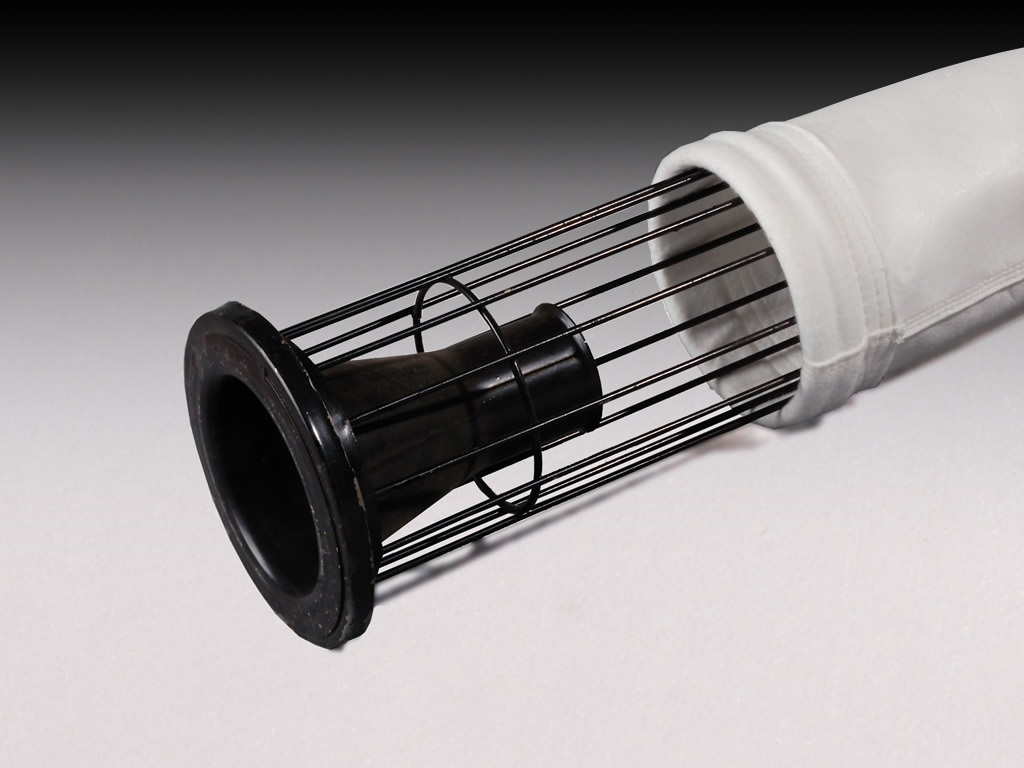

Our factory can supply dust collector cages as well as filter bags. We provide a wide range of configurations to best fulfill your needs. Cage constructions typically consist of 10, 12 or 20 vertical wires. The horizontal ring spacing on the cage can be 4", 6" or 8". If plenum height restrictions are a problem, two piece cages are available. For areas where moisture or acid corrosion present we can provide a range of materials. Top load cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4" to 6 1/8". Wire thickness ranges are; 9 gauge, 10 gauge and 11 gauge. Bottom load cages are constructed with a split collar or split ring top. For more efficient cleaning, venturis are available for all diameter cages. Venturis come in 3" to 6" lengths. Venturis are made in a variety of materials including; aluminum, carbon steel, galvanized and stainless steel.
Cage constructions typically consist of 10, 12 or 20 vertical wires.
The horizontal ring spacing on the cage can be 4", 6" or 8".
Cage diameters range from 4" to 6 1/8’’
Wire thickness ranges are; 9 gauge, 10 gauge and 11 gauge
Venturis lengths come in 3" to 6".
Custom cages also available
Materials | Finishes |
Carbon Steel | Carbon Steel |
Galvanized Steel | Galvanized Steel |
304 Stainless Steel | 304 Stainless Steel |
316 Stainless Steel | 316 Stainless Steel |
| Epoxy: (250° - 350° F. service temperature) Vinyl or Zinc coating |
